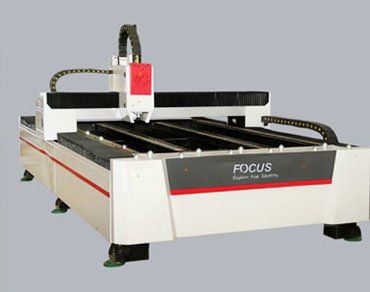

Laser Cutting Machine

Laser Cutting Machine

Model: FoCUS-FLMCM

FoCUS configures and manufactures a high-performance custom built Fiber Laser cutting machines. We do serve different industries for their product identification and traceability.



Fiber Laser technology is the latest cutting edge solution for parts marking. This technology has advantages such as high performance, easy to program and mainly no maintenance cost for their product identification. A High Quality Fiber Laser Source is used in our machine, which emits a beam controlled by the different Optics and a specific focal length to be maintained between Laser Head and the object to utilize its efficient energy for a good marking on it. Also diffraction is very limited in the Laser beam. Due to higher accuracy in pulse repeat frequency, very good marking speed and controlled dynamics of dimensions in marking is achieved.

Laser Marking Machines



Technical Parameters



Features Technical Data
Laser power 1500W
Laser wavelength 1060-1080 nm
Working area 3000(L)*1500(W) mm
Z-axis path 120 mm
Machine tolerance ± 0.05 mm/m
Repetition tolerances ± 0.05mm
X,Y-axis location accuracy ≤±0.05mm
X,Y-axis repeat location accuracy ≤±0.05mm
X,Y-axis idle moving speed 120 m/min
Acceleration rate 1 G
Max cutting speed ≤45m/min
Machine dimension 4470mm*2123mm*1800mm
Machine total weight 3.0T



Machine Confutation



No Model Name Quantity Remarks
1 FE-1530E Fiber laser cutting machine 1 set FE & TECH
2 1500W Laser generator 1 set RAYCUS
3 Water chiller Special water chiller for fiber laser generator 1 set S & A
4 Laser head High accuracy professional fiber laser head 1 set Raytools BM110 auto focus
5 Control system CYPCUT 1 set CYPCUT2000C
6 Driving system High speed servo motor 4 sets Japan Fuji servo motor 400w+850w+1.3kw
7 Reducer imported 3 sets Japan Shimpo
8 Electric components imported 1 set Schneider
9 Guide rail imported 1 set HIWIN
10 Rack imported 1 set YYC
11 Proportional valve imported 1 set Japan SMC
12 Cast aluminum beam standard 1 set FE & TECH
13 display screen standard 1 set FE & TECH
14 Protective lens, nozzles standard 5 set FE & TECH
